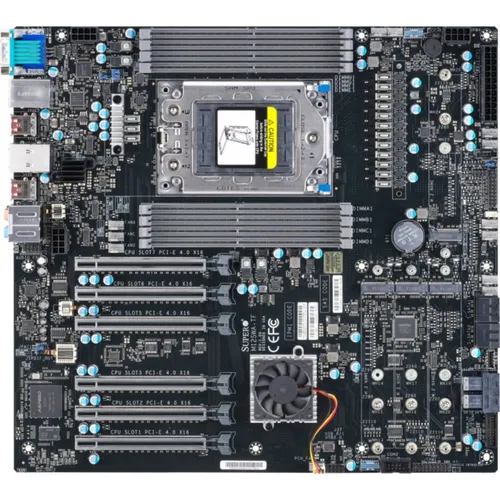

Supermicro MBD-X13SWA-TF-O E-ATX Mainboard Sockel 4677 W790
- E-ATX Mainboard mit Sockel Intel 4677 für Intel Xeon-CPU
- Intel W790-Chipsatz, keine Grafik
- k.A. max. RAM, DDR5 bis zu 4800MHz; unterstützt ECC-RAM
- 6x USB 3.2, 4x USB 3.0, 1xUSB-C, 2x Gigabit-LAN, 8x SATA600, 1x M.2, 1
Art-Nr.:2399-06S, Hst-Nr.:MBD-X13SWA-TF-O
Im Sortiment seit: April 2024
Art-Nr.:2399-06S, Hst-Nr.:MBD-X13SWA-TF-O
1.011,00 €
exkl. MwSt.
0% Finanzierung
ab 42,13 € mtl. in 24 Raten
Liefertermin unbekannt
Beschreibung
Key Features
- Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
- Intel® W790
- Up to 4TB/2TB 3DS ECC RDIMM, 1TB/512GB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
- M.2 Interface: 4 PCIe 5.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Socket (w/o heat sink)
- Xeon® W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon® W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
- 1GbE LAN port with Intel® Ethernet Controller I210-AT
- 10GbE LAN with Marvell AQC113C
- 8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
- 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
- IPMI Supported
- Overclocking Supported (optional)
Technische Daten
Audio
Audio-Chipsatz
- Realtek ALC888
externe Anschlüsse
ext. Anschlüsse
- VGA
- LAN
Anzahl USB 3.0
- 1
Anzahl USB 3.2
- 6
Grafik
Grafikspeichertyp
- DDR5
interne Anschlüsse
int. Anschlüsse
- SATA600
Anzahl PCIe 16x
- 6
Speicher
Speicherbesonderheiten
- unterstützt ECC
Speicherkanäle
- Quad-Channel
Steckplatztyp
- 16x
Arbeitsspeicher-Typ
- DDR5
Anzahl M.2
- 1
Arbeitspeicher-Taktung
- 4800 Mhz
RAM-Steckplätze gesamt
- 16
Technische Eigenschaften
Formfaktor
- E-ATX
sonstige Eigenschaften
- Intel Xeon
Chipsatz
- Intel
RAID Level
- RAID (0/1/5/10)
Zertifikate / Garantie
Herstellergarantie
- 2 Jahre
Garantiehinweis
