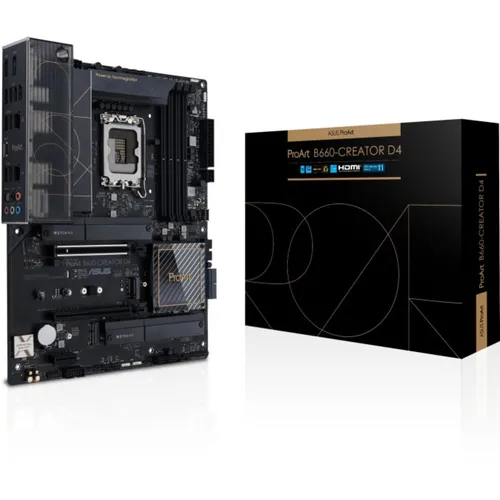

ASUS PROART B660-CREATOR D4
- ATX, Sockel 1700
- Intel B660, 4x DDR4 up to 128 GB
- 1x PCIe (x16)
- 4x SATA3, 4x M.2, 1x 2.5GBase-T / 1x GB-LAN
- 2x USB 3.1 Gen1 Typ C, 5x USB 3.1 Gen1, 6x USB2.0
- HDMI
Item No.:2301-9XS, Manufacturer's no.:90MB19F0-M1EAY0
Available since: May 2025
Item No.:2301-9XS, Manufacturer's no.:90MB19F0-M1EAY0
192,90 €
excl. VAT
0% hire purchase
from 10,72 € monthly for 18 months
In stock and immediately available
Delivery time 1-2 business days
Order together:
extraSchutz Premium 24 Monate (bis 200 Euro, inkl. Diebstahlschutz)
44,90 €
Free return30 days return policy
Over 315,183 satisfied customers
Service & supportTel: 06172/3917-0
Description
ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+, and DisplayPort via USB-C.
- USB-C DisplayPort (DP Alt Mode)
- Thunderbolt 4 support
- M.2 Q-Latch
- 2.5 Gb Ethernet
- Intel 1Gb Ethernet
- Teamed power stages
- Digi+ power control
- Trusted stability
- USB-C DisplayPort (DP Alt Mode)
This USB Type-C port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort 1.4 output for up to 8K resolution at 60 Hz. This feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display. - Thunderbolt 4 support
ProArt B660-Creator D4 features Thunderbolt 4 support via an onboard header. The ASUS ThunderboltEX 4 add-on card is certified by Intel and can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, the card has a daisy-chain function for multiscreen connection and supports one display with up to 8K resolution. It can also provide up to 100 watts of power to fast-charge devices. - M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive, eliminating the need for screws. - 2.5 Gb Ethernet
The 2.5 Gb Ethernet port provides faster data transfers and smooth high-res video streaming. - Intel 1Gb Ethernet
The Intel I219-V Ethernet chip reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. - Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand. - Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU. - Trusted stability
ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility - all to ensure that it empowers creativity for years to come.
Specifications
Certificates / guarantee
Manufacturer warranty
- 3 years
CPU
CPU socket
- 1700
External connectors
External connectors
- LAN
Number of Displayport
- 1
Number of HDMI
- 1
Number of USB 2.0
- 4
Number of USB 3.0
- 1
Number of USB 3.2
- 1
Graphics
Graphics chip manufacturer
- Intel
Internal connectors
Int. connectors
- SATA600
PCIe slots
- PCIe 5.0
Number of PCIe 16x
- 5
Number of PCIe 1x
- 1
Memory
Memory channels
- Dual Channel
Slot type
- 4x
Memory type
- DDR4
Number of M.2
- 3
RAM clock speed
- 5333 MHz
Maximum RAM
- 128 GB
Total RAM slots
- 4
Network
Number of Gigabit ports
- 1
Number of 2.5 Gigabit ports
- 1
Technical characteristics
Form factor
- ATX
Other properties
- augmented reality
- Intel Core 12th generation
Chipset
- Intel
RAID level
- RAID (0/1/10)
